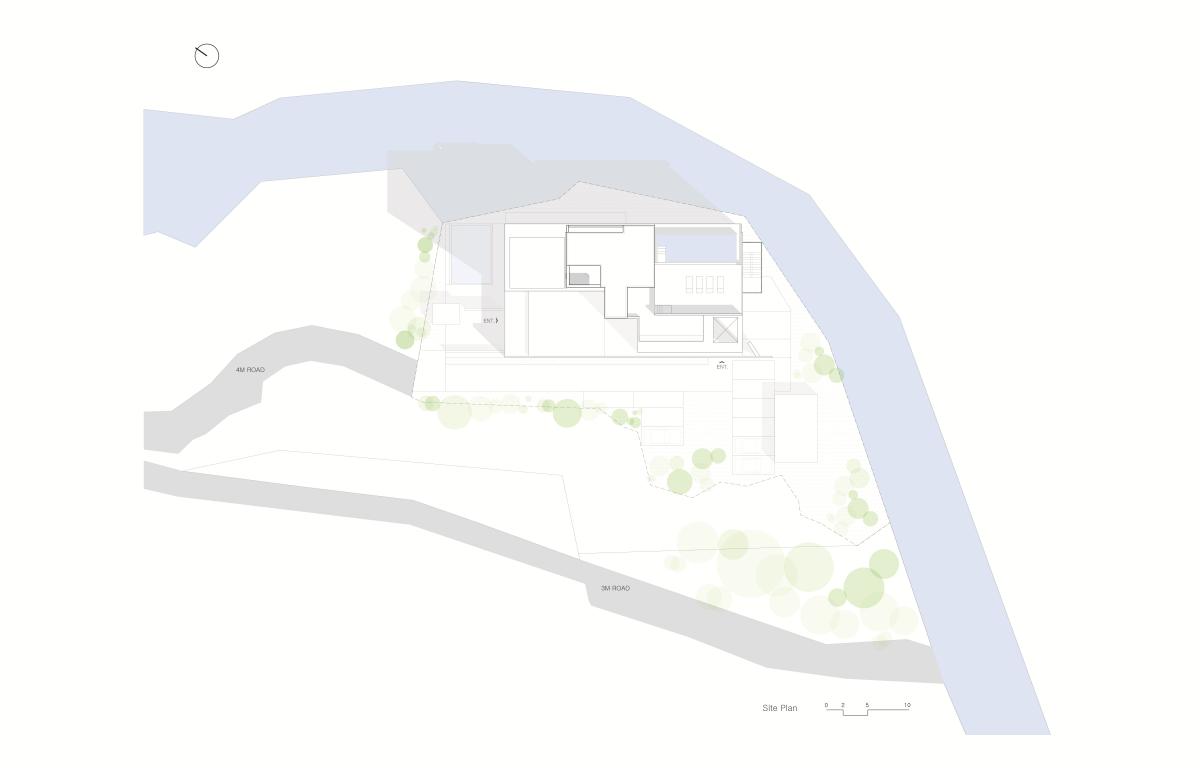

Design planProject location: Najeon-ri, Saengnim-myeon, Gimhae-si, Gyeongsangnam-do, Republic of Korea
변화된 가치건축법 및 문화의 변화에 맞춘 건축물
지속가능한 건축물현행법 기준의 건축물로 만들다.
숲을 즐기다숲으로 떠나는 여행을 고민하며, 자연과 관계 맺기.

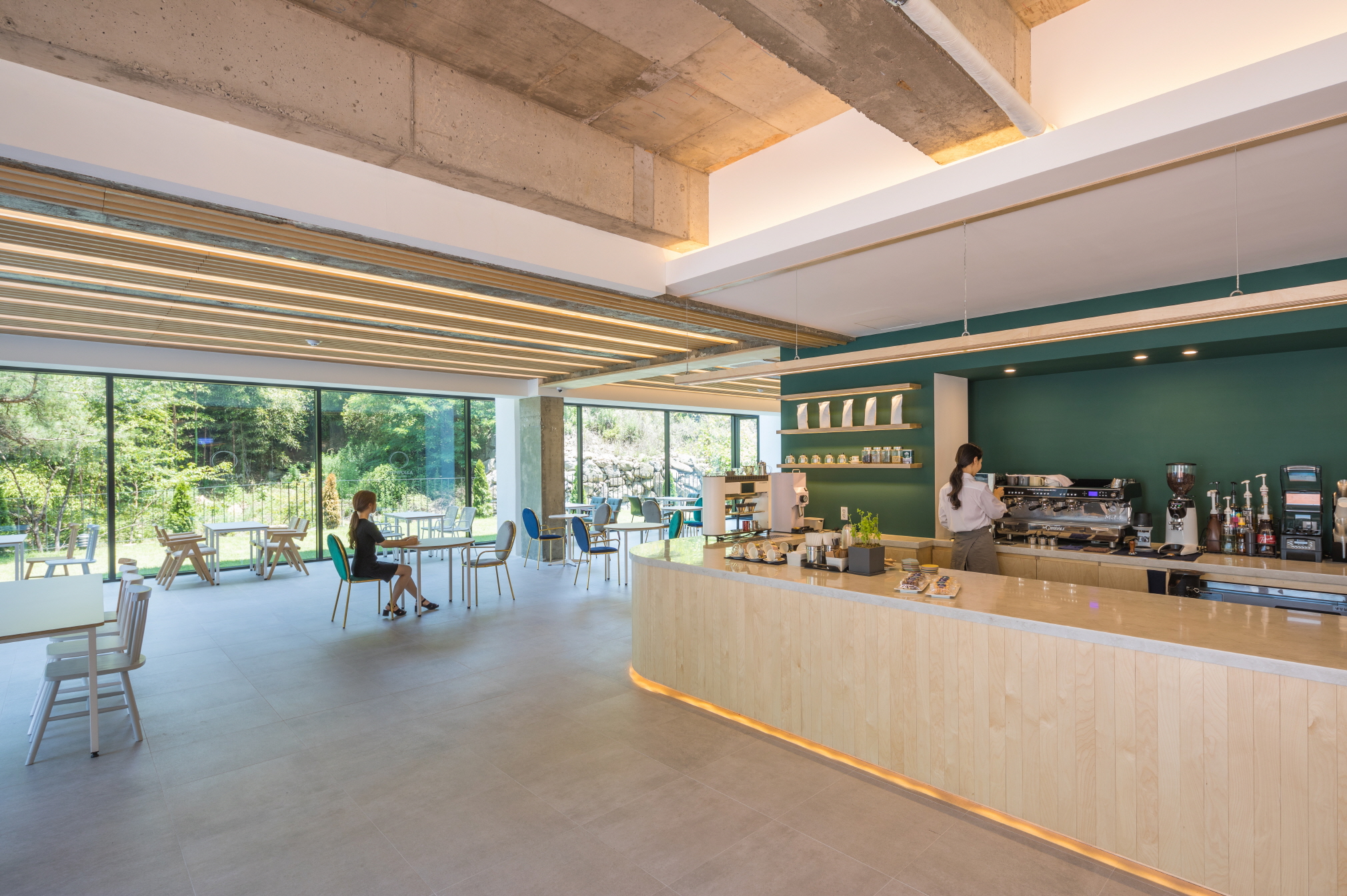

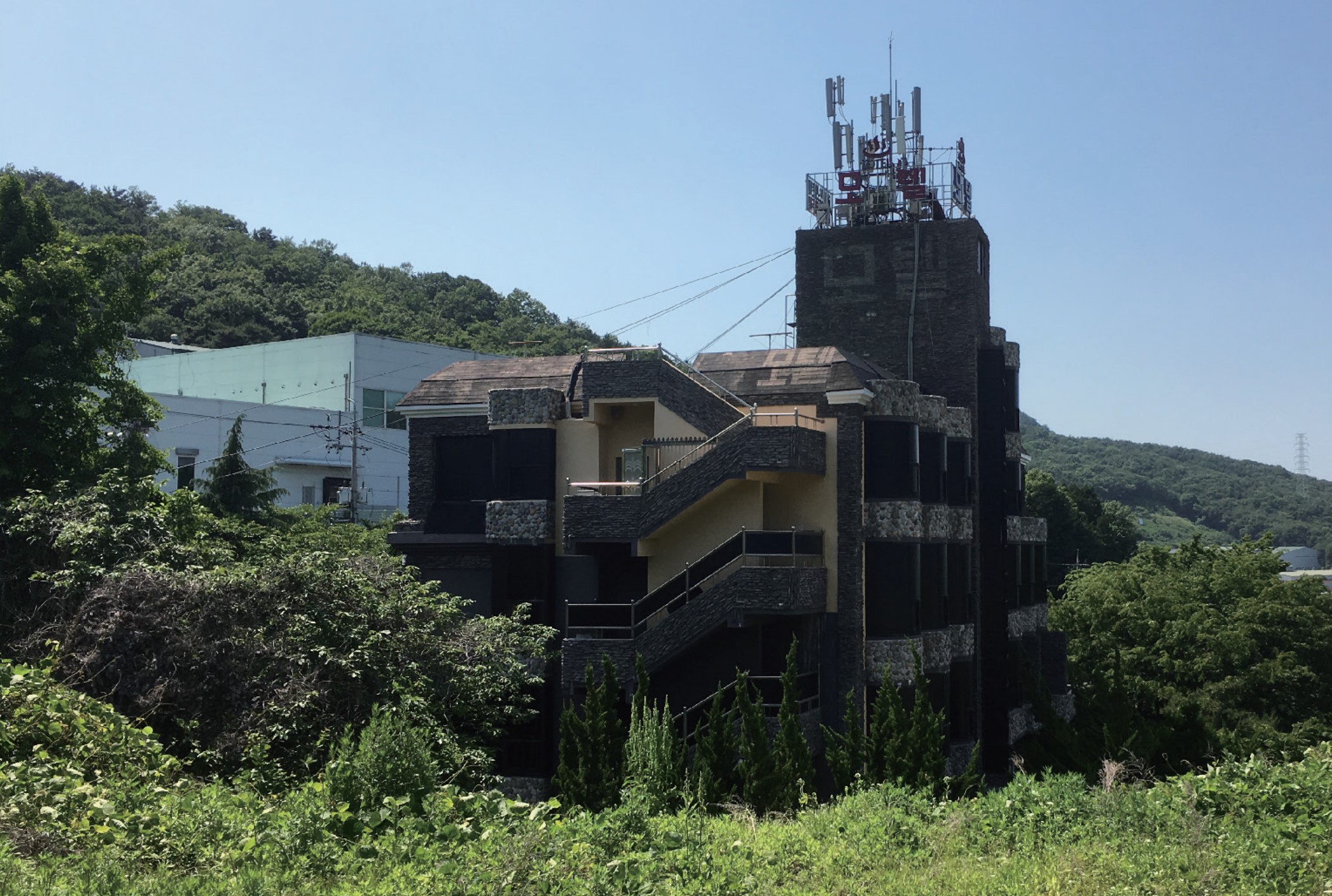

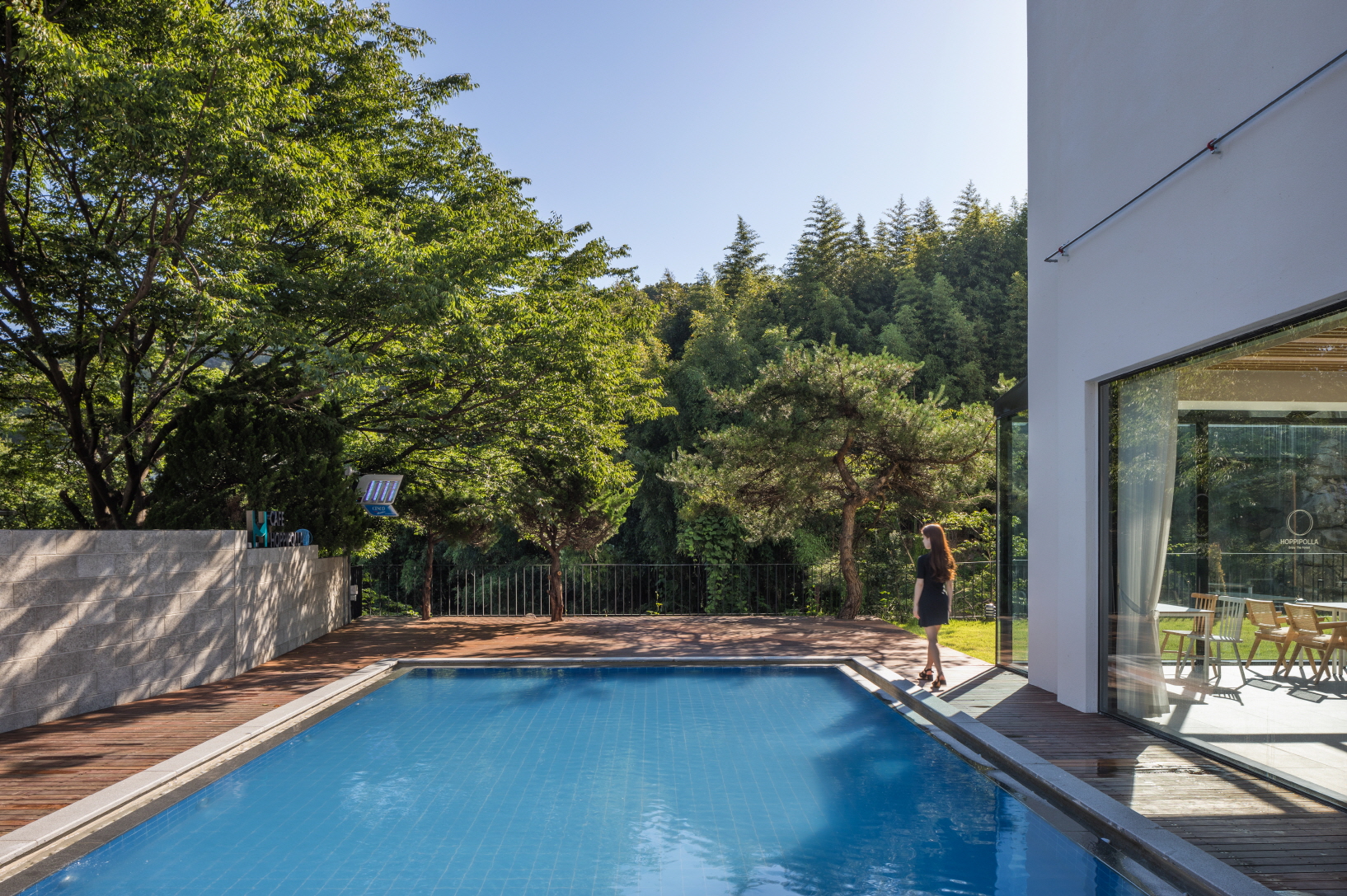

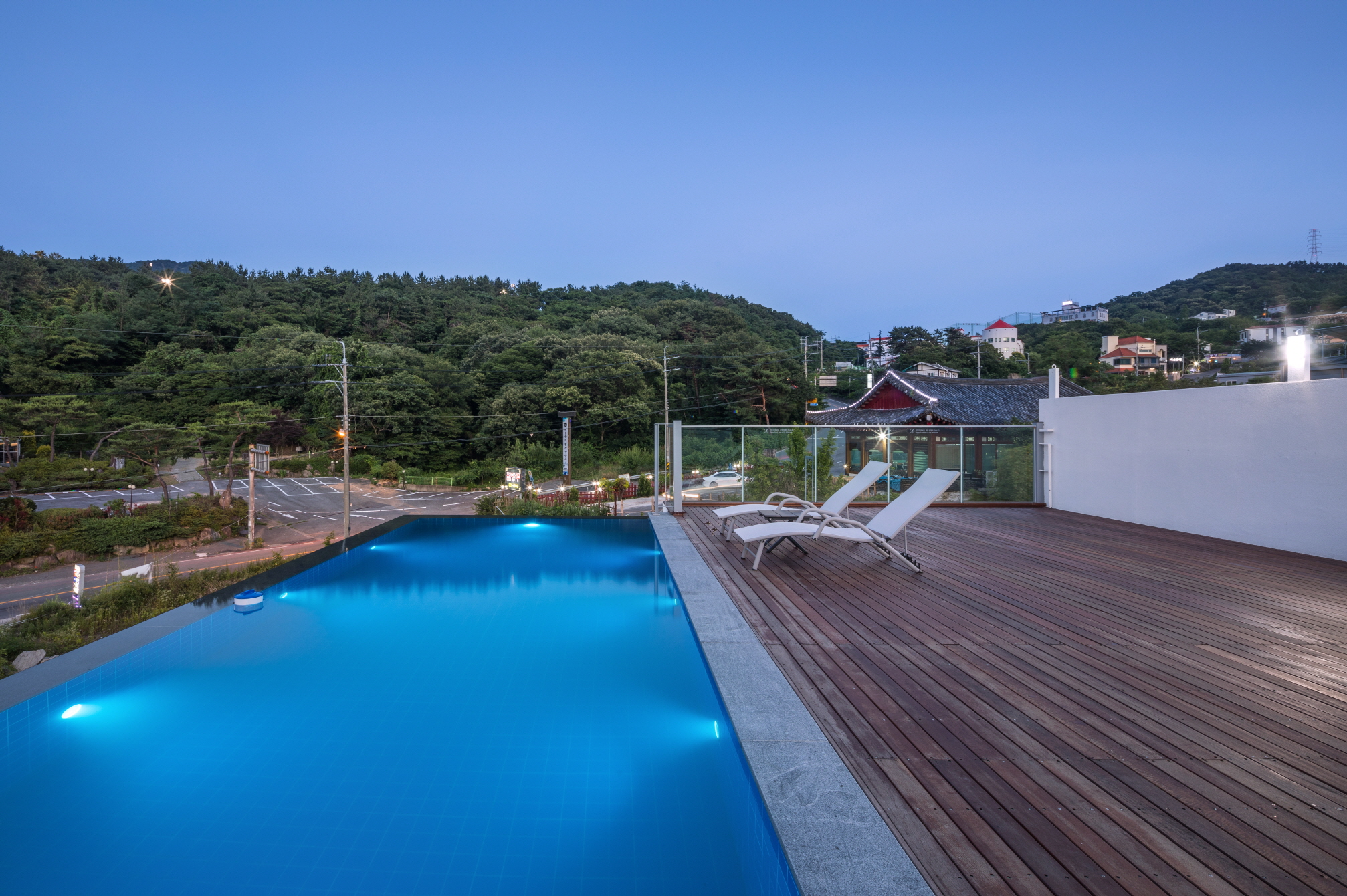

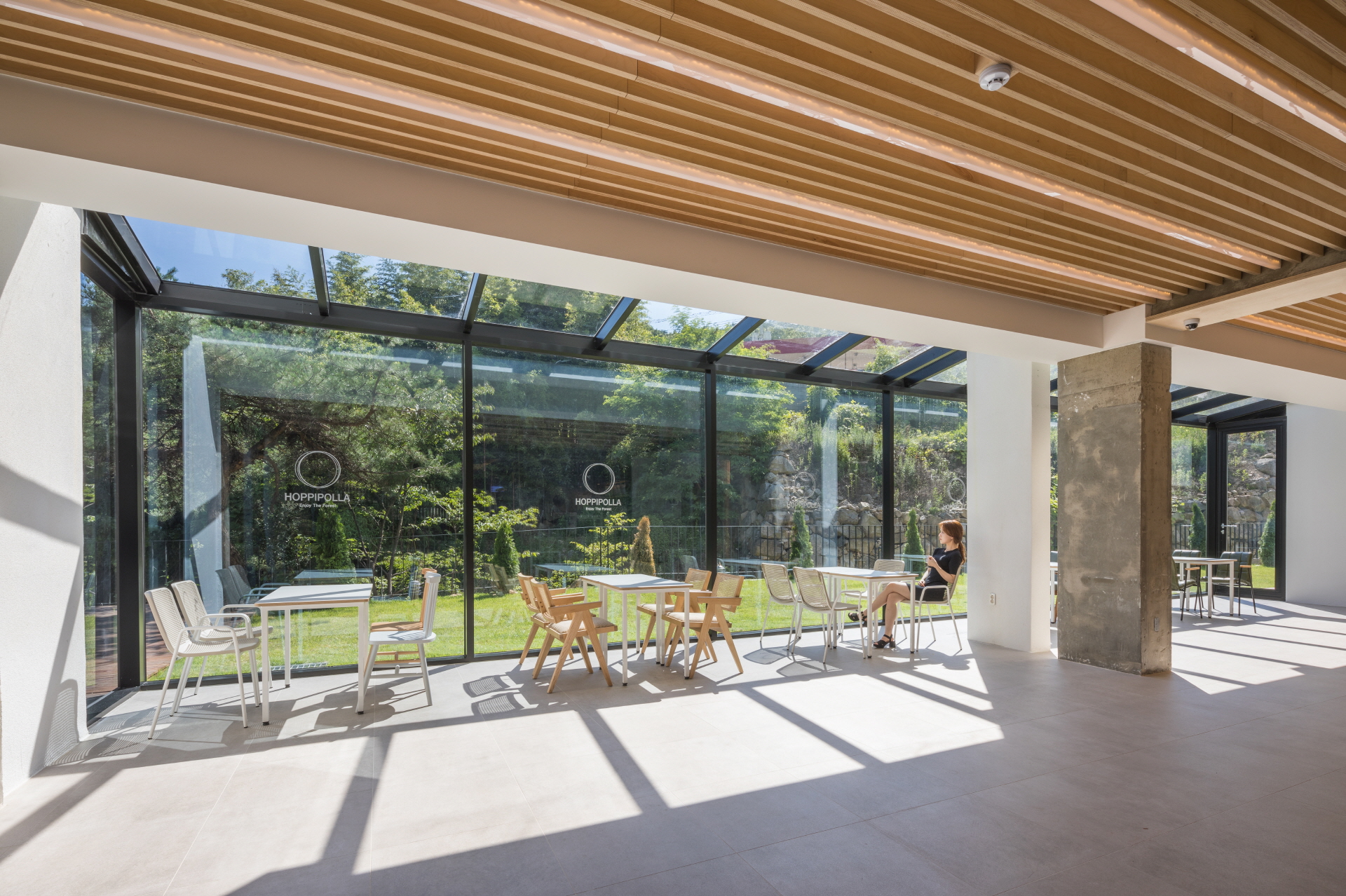

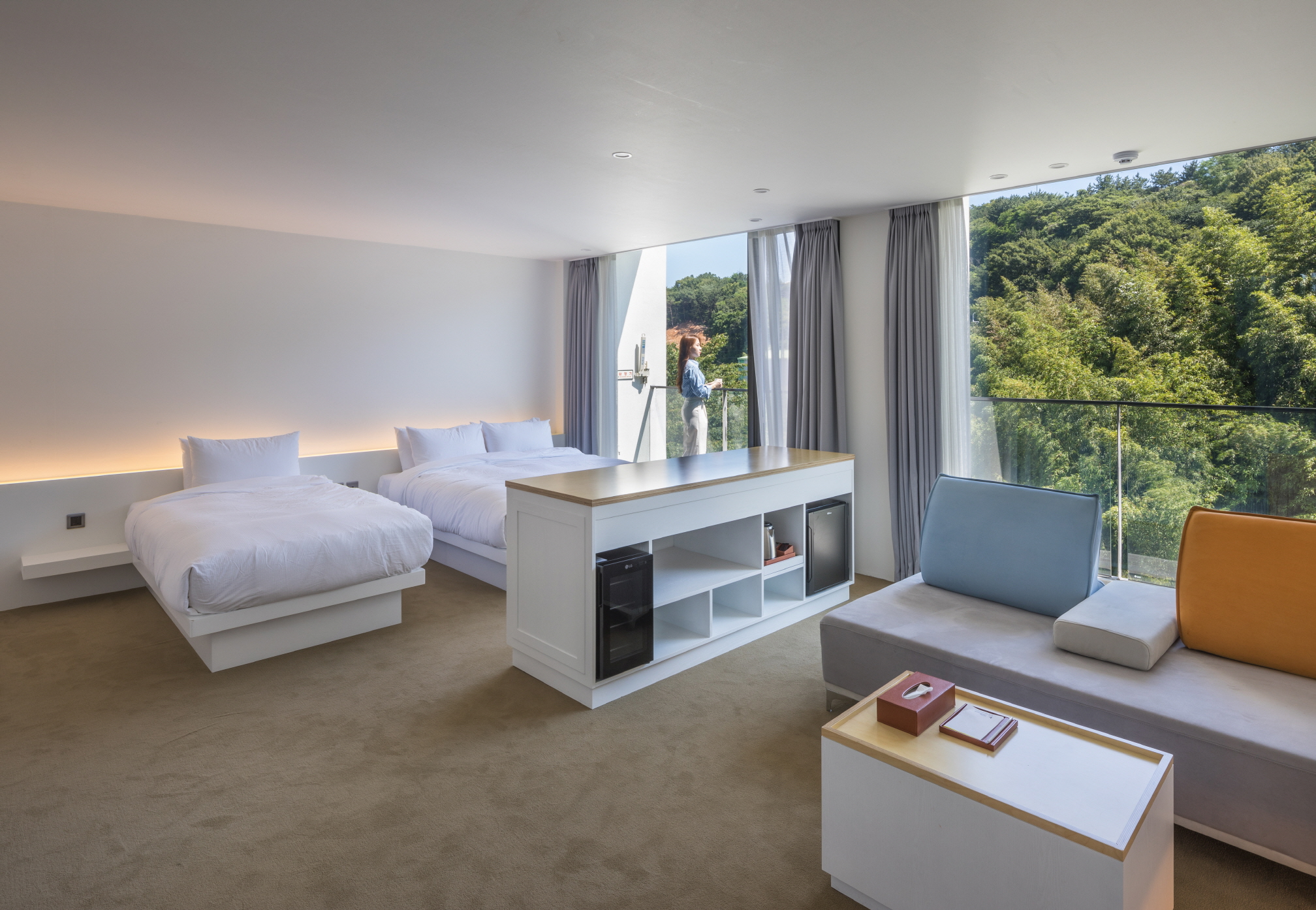

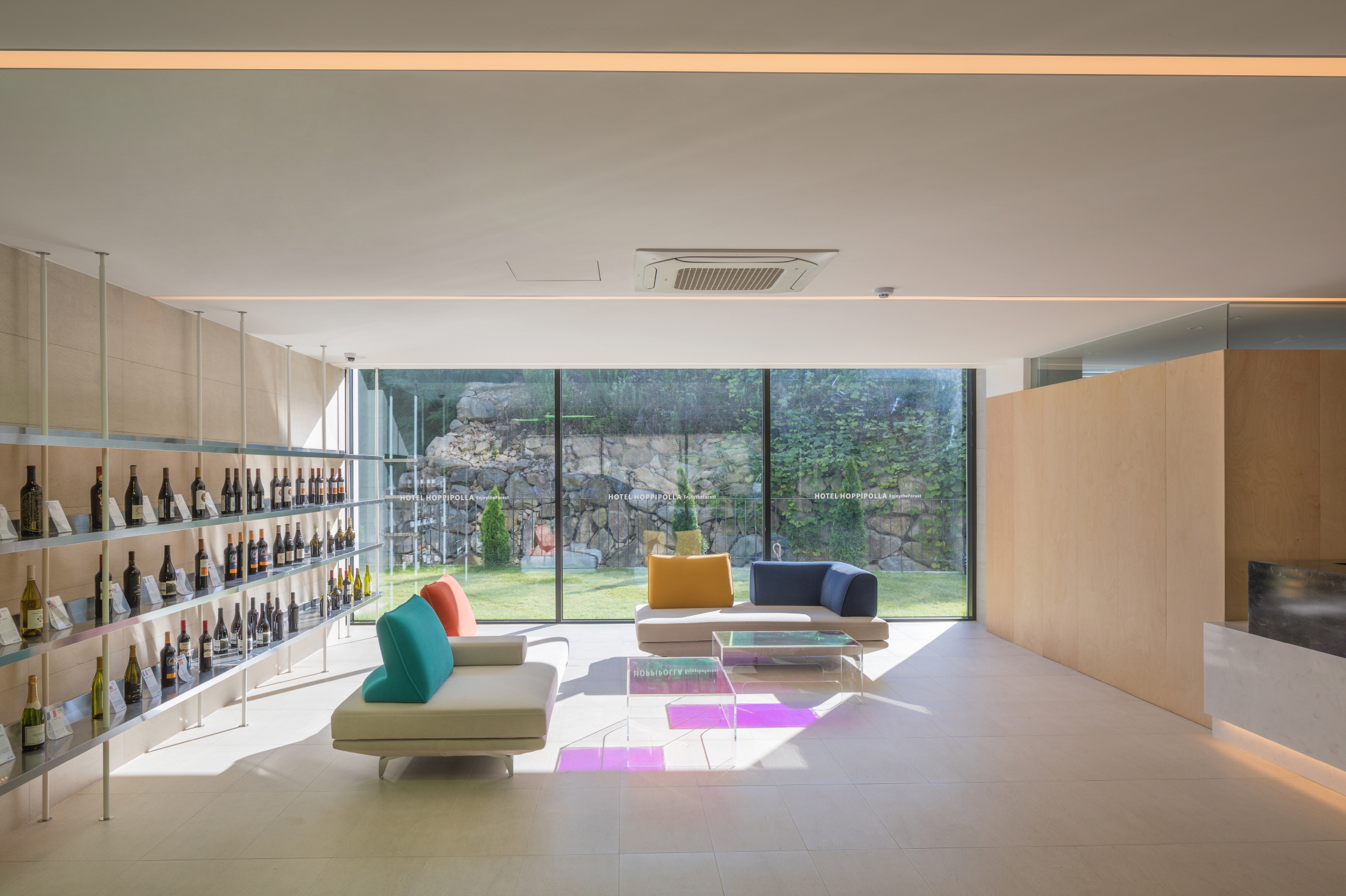

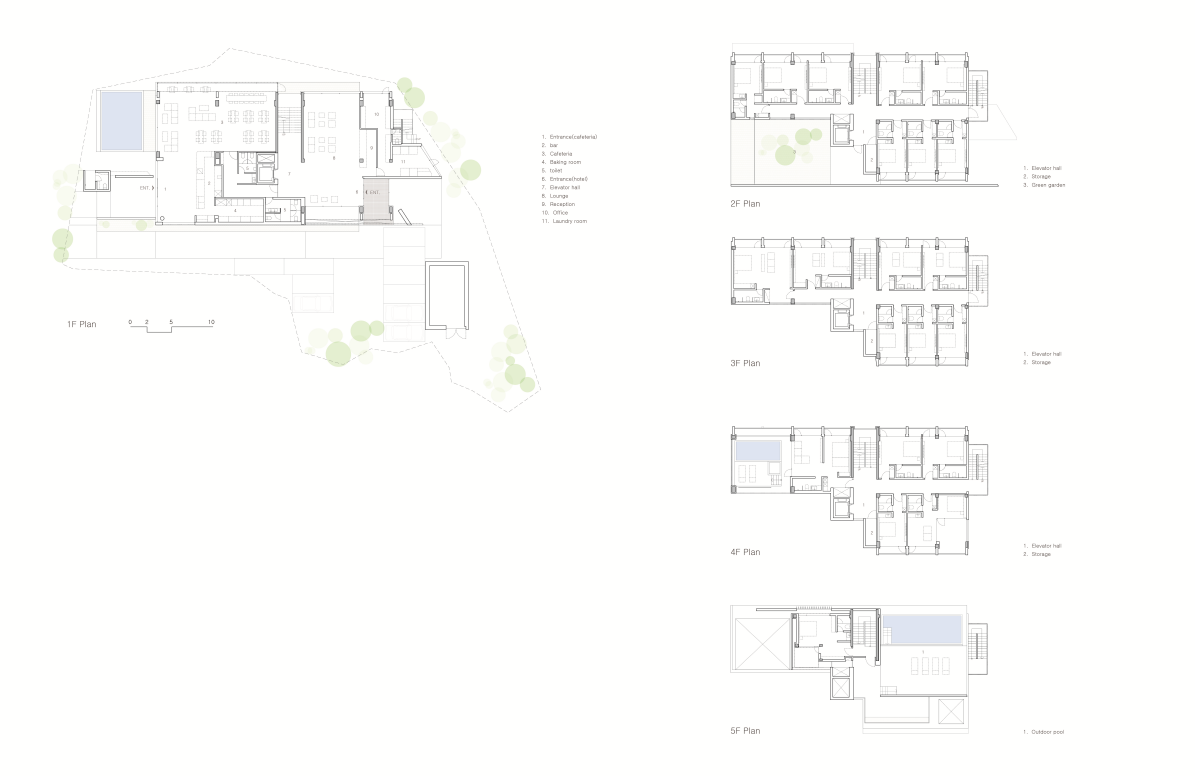

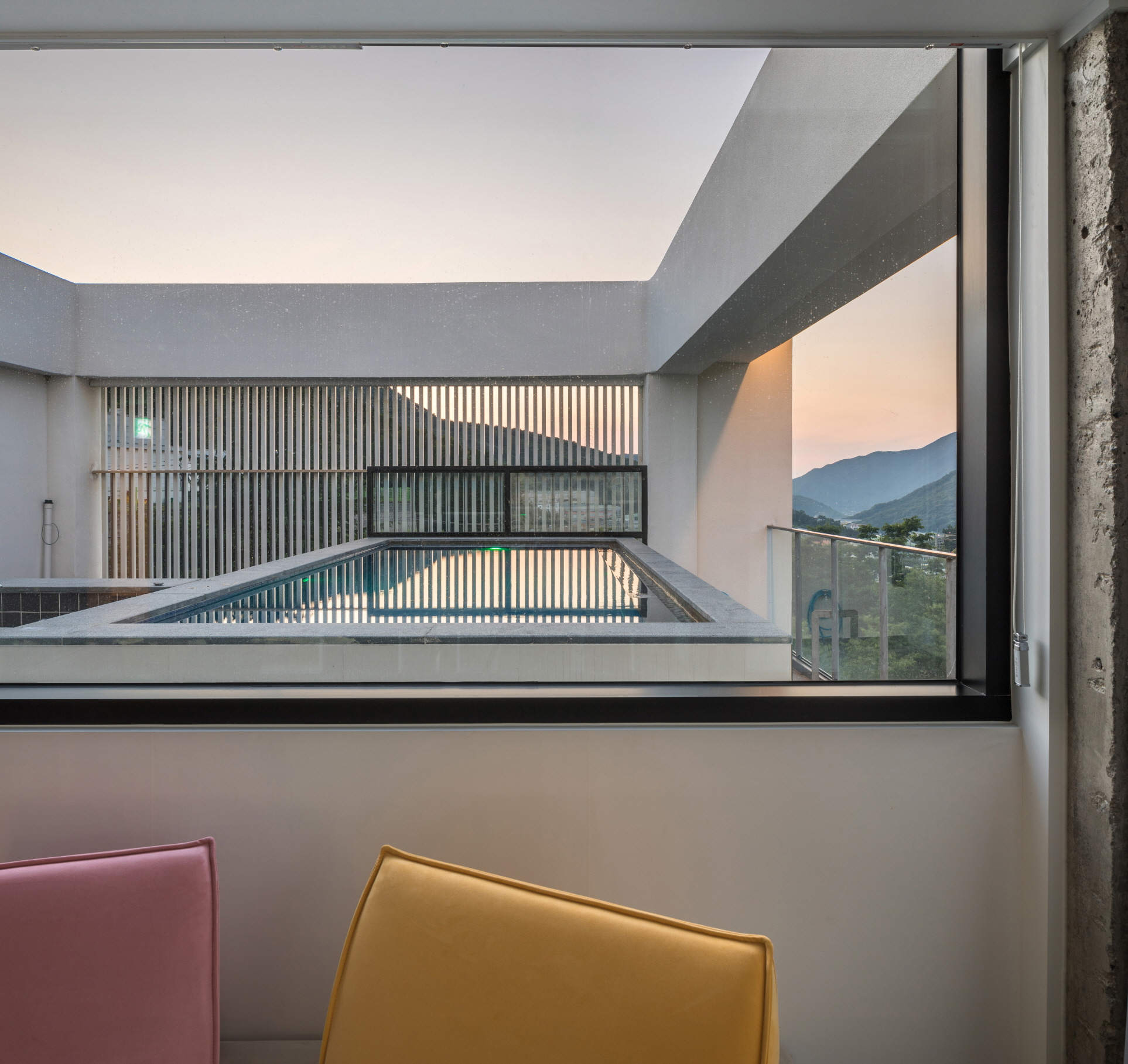

Change in values: architecture that adapts to changes in building laws and cultureThe site is a planned management area, and usage as accommodation facilities is out of the question. In order to maintain the use of the existing accommodation facilities (semi-agricultural land areas), the 2nd to 5th floors above the ground are planned to be repaired, and the 1st floor for general restaurant use is planned as an extension. In order to enjoy the outdoor space, the campground, swimming pool and other facilities were newly planned, and the number of rooms was reduced and reorganized into a family-oriented accommodation.

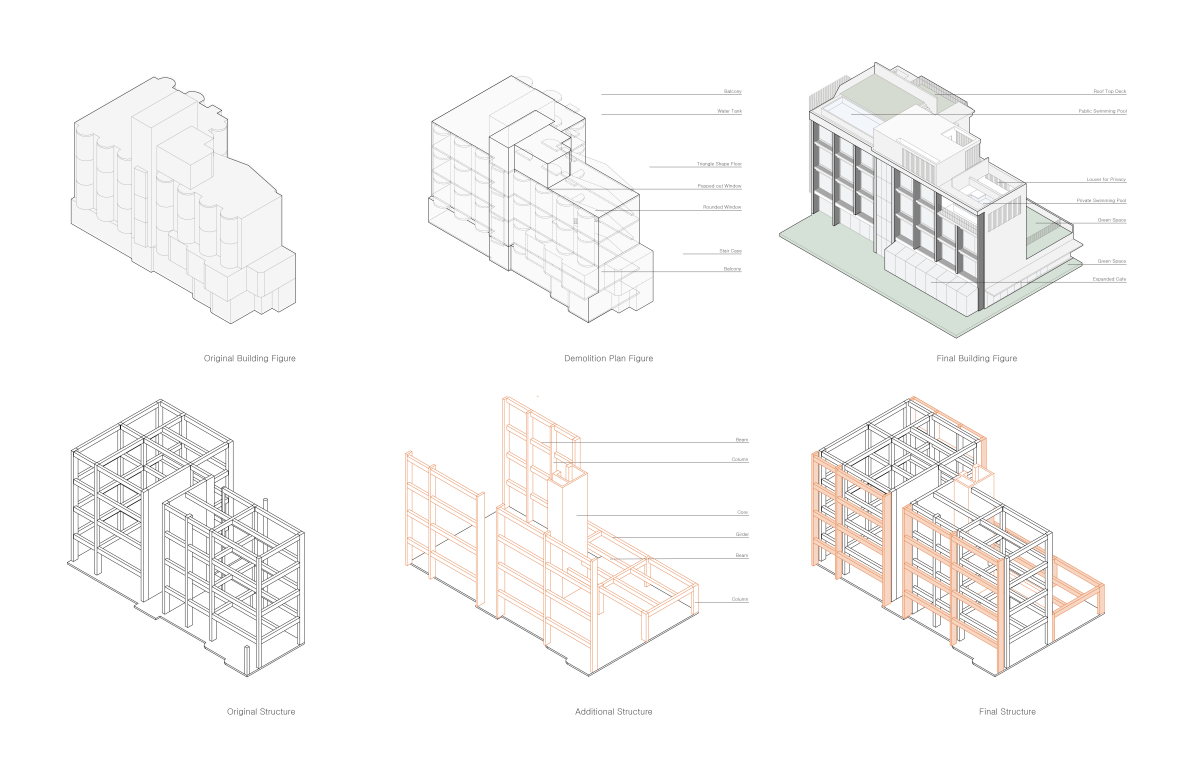

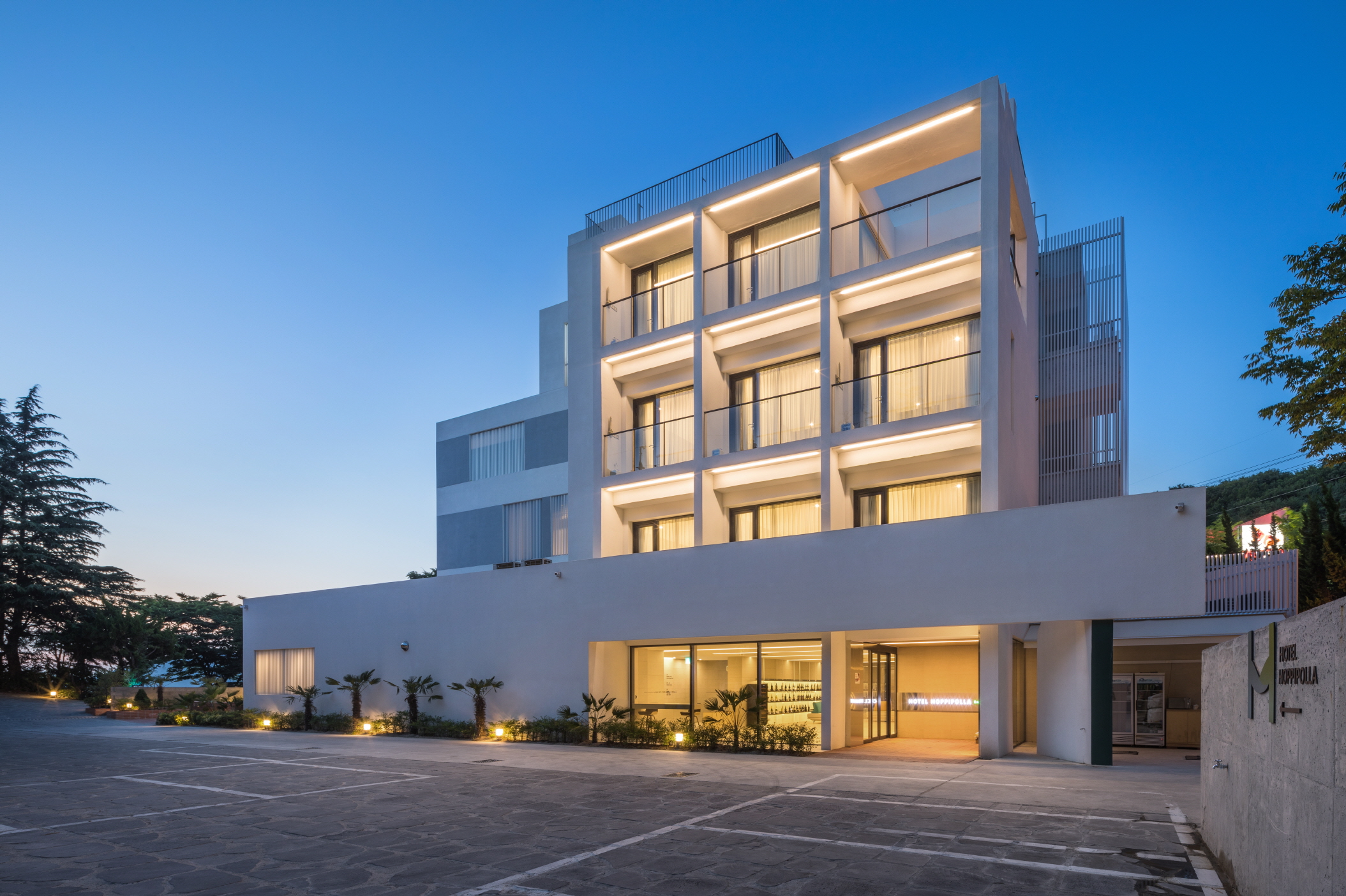

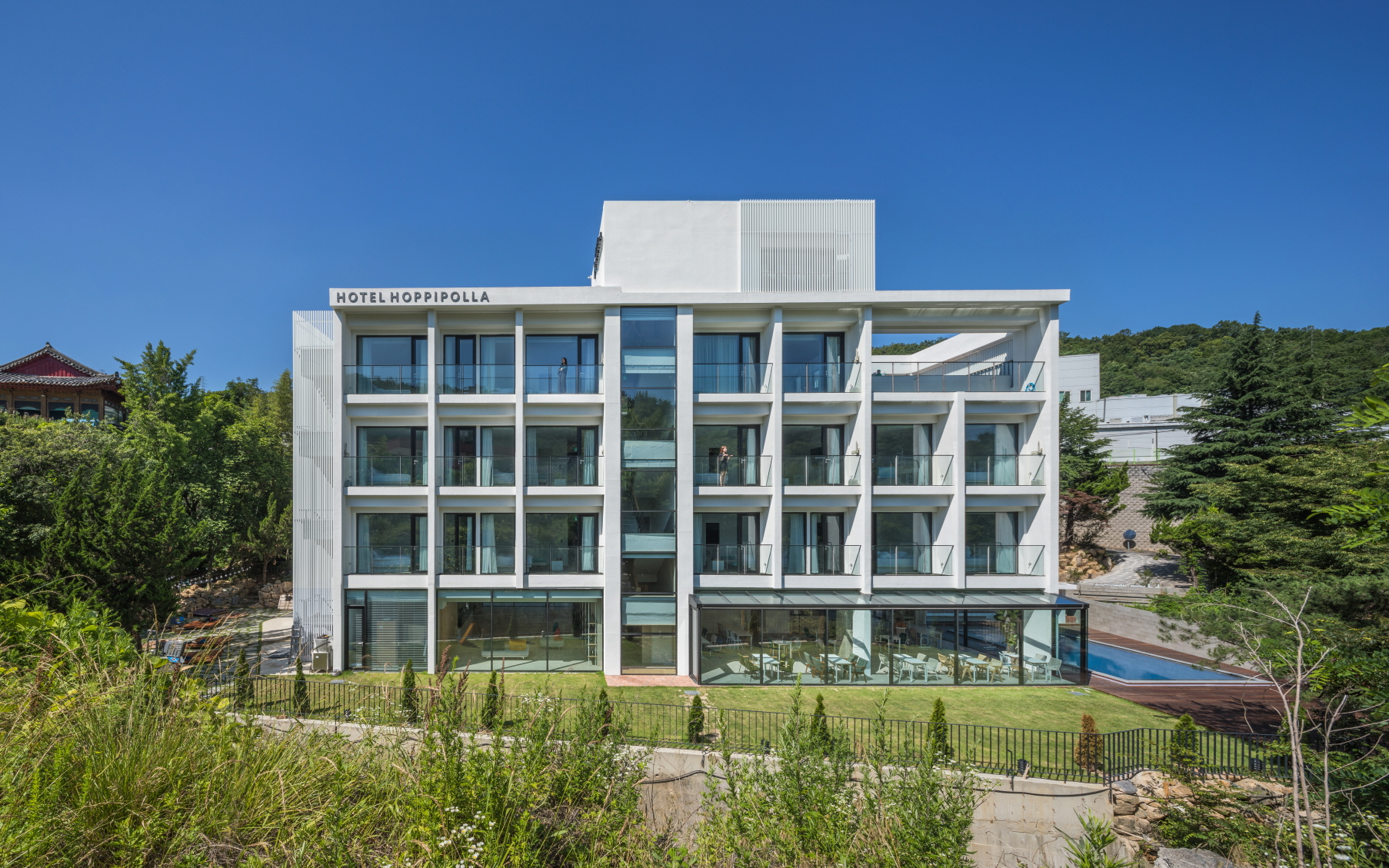

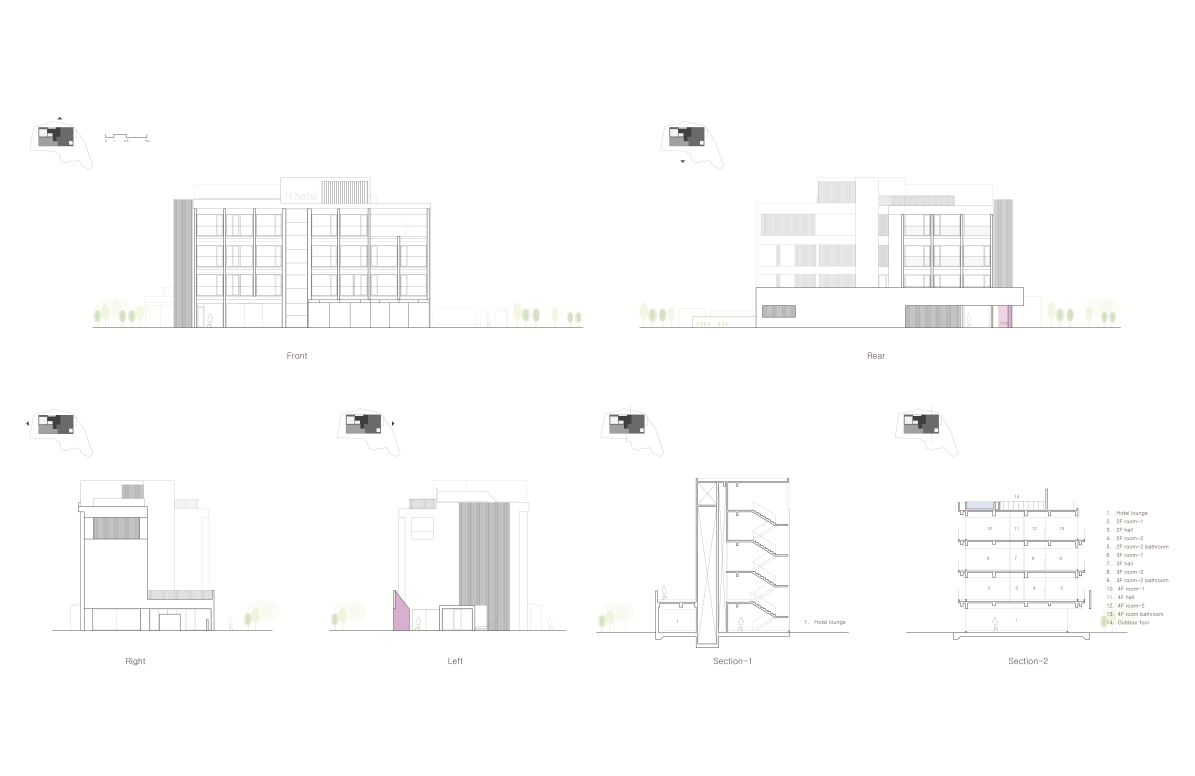

Sustainable architectureCompared to before the major renovation, the expected energy saving rate is 66.99% (ECO2 simulation). The existing reinforced concrete was structurally reinforced to satisfy the seismic design standards. The balcony was organized and a new shape and external awning were created. In order to enhance energy efficiency and use more internal space, the shape was rearranged with an external insulation method, and airtight windows and energy-saving products were used. Compared to the building before the major renovation, it has been upgraded to be a building that can save energy with materials and structures that are faithful to the current law standards.
